4.8. Inductor Devices

4.8.1. inductor

Device Information

Inductor

Property	Value
Description	2-Terminal inductor (Single output)
Device Recognition	IND, TopMetal2, PWell.blk, text
Model Name	inductor
Layout Cell Name	sg13g2_pr - inductor2
Parameters	w, s, d, nr_r
Netlist Syntax	L1 LA LB sub! inductor w=2u s=2.1u d=25.35u nr_r=1
Additional Notes	Surrounded by filler exclusion layer for all metals, activ and GatPoly layers.

Parameters Information

Schematic and LVS views Compatibility for inductor2 Parameters

Parameter	Description	Schematic-View	LVS-View	LVS-Comparison
W	Width of inductor metal lines	❌	✅	✅
S	Spacing between metal lines of inductor	❌	✅	✅
D	Diameter of the inductor	❌	✅	✅
nr_r	Number of turns	❌	✅	✅

Layout Information (Refer to Layout Layers)

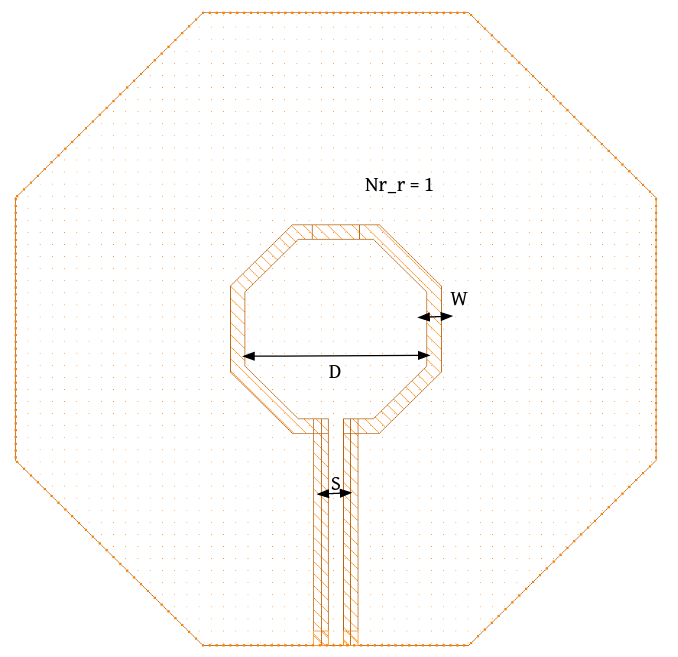

Figure 4.8.1 Layout for inductor2 device

4.8.2. inductor3

Device Information

Inductor3

Property	Value
Description	3-Terminal inductor (Differential output)
Device Recognition	IND, TopMetal2, PWell.blk, text
Model Name	inductor3
Layout Cell Name	sg13g2_pr - inductor3
Parameters	w, s, d, nr_r
Netlist Syntax	L1 LA LC LB sub! inductor3 w=2u s=2.1u d=25.35u nr_r=2
Additional Notes	Surrounded by filler exclusion layer for all metals, activ and GatPoly layers.

Parameters Information

Schematic and LVS views Compatibility for Inductor3 Parameters

Parameter	Description	Schematic-View	LVS-View	LVS-Comparison
W	Width of inductor metal lines	❌	✅	✅
S	Spacing between metal lines of inductor	❌	✅	✅
D	Diameter of the inductor	❌	✅	✅
nr_r	Number of turns	❌	✅	✅

Layout Information (Refer to Layout Layers)

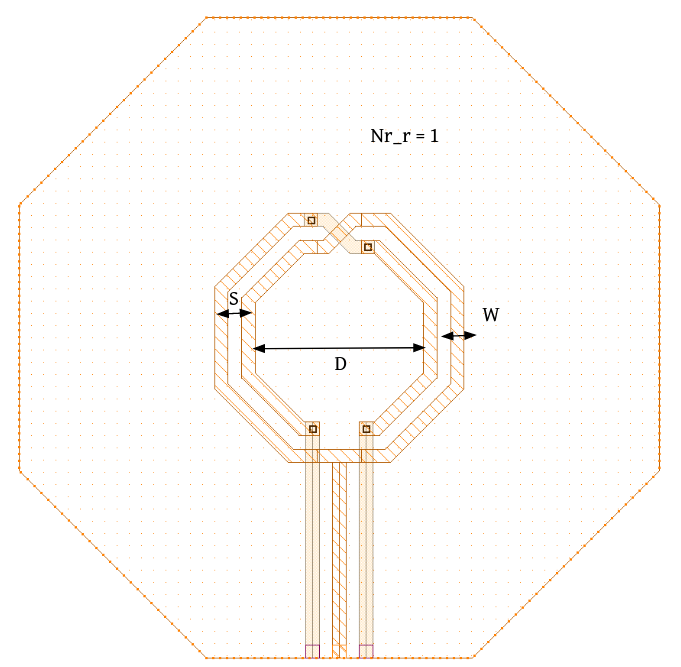

Figure 4.8.2 Layout for inductor3 device
