2. Layers

2.1. Layers Definition

Please refer to the Layer Table section in the layout rules for more information about the available layers in SG13G2 SiGe BiCMOS technology.

2.2. Layout Layers

Tip

The illustration below is a helpful guide to understanding the layering system used in layout design. Each layer is assigned a unique color, making it visually clear and easier to visualize LVS devices.

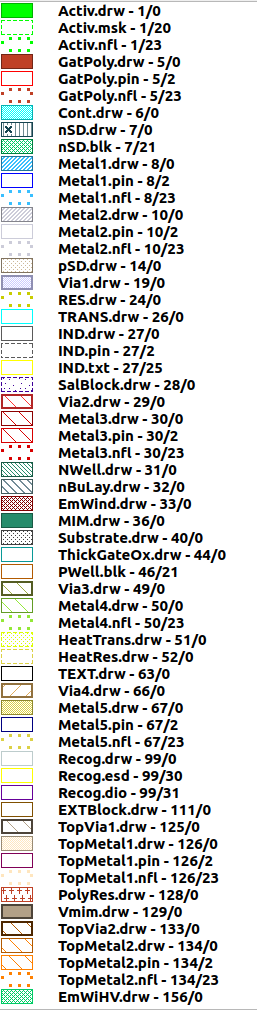

Figure 2.2.1 Layer Color Coding Reference for KLayout

Figure 2.2.2 Layer Color Coding Reference for Layout (Original)
