4.6. Capacitor Devices

4.6.1. cmim

Device Information

Metal-Insulator-Metal capacitor

Property

Value

Description

Metal5 - insulator - TopMetal1 capacitor, scalable rectangular shape.

Device Recognition

MIM, VMIM, Metal5, TopMetal1

Model Name

cap_cmim

Layout Cell Name

sg13g2_pr - cmim

Parameters

w, l, A, P, m

Netlist Syntax

C0 PLUS MINUS cap_cmim w=6.99u l=6.99u m=1

Additional Notes

Capacitor body is defined by MIM drawing. Not available with Cu BEOL.

Within MIM capacitor layer Vmim can be used instead of TopVia1.

Parameters Information

Schematic and LVS views Compatibility for cmim Parameters

Parameter

Description

Schematic-View

LVS-View

LVS-Comparison

W

Capacitor Width

✅

✅

❌

L

Capacitor Length

✅

✅

❌

A

Capacitor Area

✅

✅

✅

P

Capacitor Perimeter

✅

✅

✅

m/MF

Number of capacitors (multiplicity)

❌

✅

✅

Layout Information (Refer to Layout Layers)

cmim device - layout

Figure 4.6.1 Layout for cmim capacitor device

4.6.2. rfcmim

Device Information

Metal-Insulator-Metal RF capacitor

Property

Value

Description

Metal5 - insulator - TopMetal1 capacitor with ptap surrounding and special RF model.

Device Recognition

MIM, VMIM, Metal5, TopMetal1, PWell.blk, ptap (Activ + pSD)

Model Name

rfcmim

Layout Cell Name

sg13g2_pr - rfcmim

Parameters

w, l, A, P, wfeed

Netlist Syntax

C1 PLUS MINUS sub! rfcmim w=7u l=7u wfeed=3u

Parameters Information

Schematic and LVS views Compatibility for rfcmim Parameters

Parameter

Description

Schematic-View

LVS-View

LVS-Comparison

W

Capacitor Width

❌

✅

✅

L

Capacitor Length

❌

✅

✅

A

Capacitor Area

✅

✅

✅

P

Capacitor Perimeter

✅

✅

✅

wfeed

Capacitor feed width

❌

✅

✅

Layout Information (Refer to Layout Layers)

rfcmim device - layout

Figure 4.6.2 Layout for rfcmim capacitor device

4.6.3. MOSCAP

The MOSCAP devices are two-terminal MOS capacitors. The gate forms one terminal and the source, drain, and body or well are shorted internally to form the second terminal. The N-type and P-type devices use different body connections and are documented separately below.

4.6.3.1. moscap_n

Device Information

N-type MOS capacitor

Property

Value

Description

N-type MOS capacitor with gate terminal and substrate terminal.

Device Recognition

GatPoly, Activ, device label

Model Name

sg13_moscap_n

Layout Cell Name

moscap_n

Parameters

w, l, m

Netlist Syntax

C1 G SUB sg13_moscap_n w=5u l=1u

Additional Notes

The source, drain, and body are connected to SUB in the two-terminal model.
The w and l dimensions for MOSCAP follow the MOS convention: w is the y-axis dimension and l is the x-axis dimension.

Parameters Information

Schematic and LVS views Compatibility for moscap_n Parameters

Parameter

Description

Schematic-View

LVS-View

LVS-Comparison

W

Capacitor width

✅

✅

✅

L

Capacitor length

✅

✅

✅

m

Schematic multiplicity

✅

❌

❌

Layout View (Refer to Layout Layers)

moscap_n device - layout

Figure 4.6.3 Layout for moscap_n capacitor device

4.6.3.2. moscap_p

Device Information

P-type MOS capacitor

Property

Value

Description

P-type MOS capacitor with gate terminal and N-well terminal.

Device Recognition

GatPoly, Activ, pSD, Nwell, device label

Model Name

sg13_moscap_p

Layout Cell Name

moscap_p

Parameters

w, l, m

Netlist Syntax

C1 G NW sg13_moscap_p w=5u l=1u

Additional Notes

The source, drain, and body are connected to NW in the two-terminal model.
The w and l dimensions for MOSCAP follow the MOS convention: w is the y-axis dimension and l is the x-axis dimension.

Parameters Information

Schematic and LVS views Compatibility for moscap_p Parameters

Parameter

Description

Schematic-View

LVS-View

LVS-Comparison

W

Capacitor width

✅

✅

✅

L

Capacitor length

✅

✅

✅

m

Schematic multiplicity

✅

❌

❌

Layout View (Refer to Layout Layers)

moscap_p device - layout

Figure 4.6.4 Layout for moscap_p capacitor device

4.6.4. SVaricap

Device Information

variable capacitor - MOSFET

Property

Value

Description

Variable capacitor, available only with thick oxide.

Device Recognition

Activ, GatPoly, pSD, Nwell, nBuLay, ThickGateOx

Model Name

SVaricap

Layout Cell Name

sg13g2_pr - SVaricap

Parameters

w, l

Netlist Syntax

C1 G1 W G2 sub! sg13_hv_svaricap l=0.3u w=3.74u

Additional Notes

Only two combinations of width and length are allowed.

Parameters Information

Schematic and LVS views Compatibility for SVaricap Parameters

Parameter

Description

Schematic-View

LVS-View

LVS-Comparison

W

Capacitor Width

❌

✅

✅

L

Capacitor Length

❌

✅

✅

Layout Information (Refer to Layout Layers)

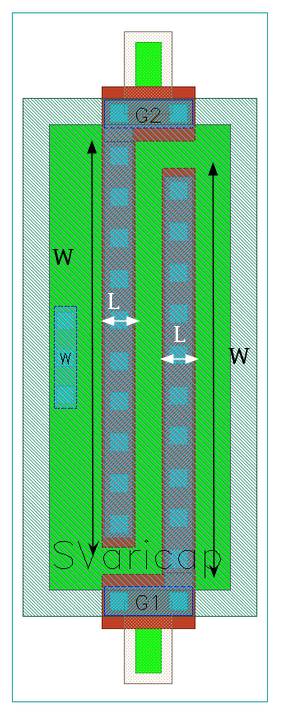

SVaricap device - layout

Figure 4.6.5 Layout for SVaricap capacitor device
