4.5. Resistor Devices

4.5.1. rhigh

Device Information

Polysilicon Resistor of a High Sheet Resistance

Property

Value

Description

High-ohmic poly-Si resistor.

Device Recognition

GatPoly, nSD, pSD, SalBlock, ExtBlock, PolyRes

Model Name

res_rhigh

Layout Cell Name

sg13g2_pr - rhigh

Parameters

w, l, m, ps, b, R

Netlist Syntax

R0 net1 net2 res_rhigh w=0.5u l=1.2u ps=0.18u b=2 m=1

Additional Notes

It represents an unsalicided partial compensated low n-doped GatPoly resistor.

Resistor body is defined by SalBlock drawing layer.

Sheet resistance of 1360 Ω/sq.

nSD only within Rhigh resistor device (pSD and nSD are identical).

Parameters Information

Schematic and LVS views Compatibility for rhigh Parameters

Parameter

Description

Schematic-View

LVS-View

LVS-Comparison

W

PolyRes Width

✅

✅

✅

L

PolyRes Length

✅

✅

✅

m

Number of resistors (multiplicity)

✅

✅

✅

ps

poly space between bends

❌

✅

✅

b

Number of bends

❌

✅

✅

R

Resistance Value

✅

❌

❌

Layout Information (Refer to Layout Layers)

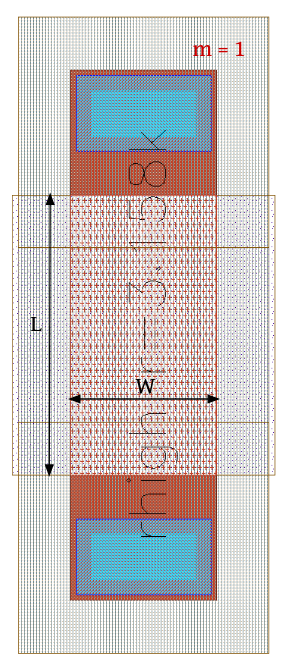

rhigh device - layout

Figure 4.5.1 Layout for rhigh resistor device

4.5.2. rppd

Device Information

Polysilicon Resistor

Property

Value

Description

Medium resistance poly-Si resistor.

Device Recognition

GatPoly, pSD, SalBlock, ExtBlock, PolyRes

Model Name

res_rppd

Layout Cell Name

sg13g2_pr - rppd

Parameters

w, l, m, ps, b, R

Netlist Syntax

R0 net1 net2 res_rppd w=0.5u l=1.2u ps=0.18u b=2 m=1

Additional Notes

It represents the unsalicided p+ doped GatPoly resistor.

Resistor body is defined by SalBlock drawing layer.

Sheet resistance of 260 Ω/sq.

Parameters Information

Schematic and LVS views Compatibility for rppd Parameters

Parameter

Description

Schematic-View

LVS-View

LVS-Comparison

W

PolyRes Width

✅

✅

✅

L

PolyRes Length

✅

✅

✅

m

Number of resistors (multiplicity)

✅

✅

✅

ps

Poly space between bends

❌

✅

✅

b

Number of bends

❌

✅

✅

R

Resistance Value

✅

❌

❌

Layout Information (Refer to Layout Layers)

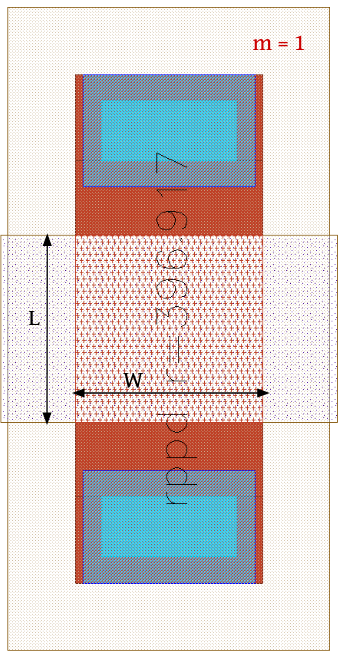

rppd device - layout

Figure 4.5.2 Layout for rppd resistor device

4.5.3. rsil

Device Information

Silicide Resistor

Property

Value

Description

Salicided poly-Si resistor (low-ohmic).

Device Recognition

GGatPoly, RES, ExtBlock, PolyRes

Model Name

res_rsil

Layout Cell Name

sg13g2_pr - rsil

Parameters

w, l, m, ps, b, R

Netlist Syntax

R0 net1 net2 res_rsil w=0.5u l=1.2u ps=0.18u b=2 m=1

Additional Notes

It represents the salicided n+ doped GatPoly resistor.

Resistor body is defined by SalBlock drawing layer.

Sheet resistance of 7 Ω/sq.

Parameters Information

Schematic and LVS views Compatibility for rsil Parameters

Parameter

Description

Schematic-View

LVS-View

LVS-Comparison

W

PolyRes Width

✅

✅

✅

L

PolyRes Length

✅

✅

✅

m

Number of resistors (multiplicity)

✅

✅

✅

ps

Poly space between bends

❌

✅

✅

b

Number of bends

❌

✅

✅

R

Resistance Value

✅

❌

❌

Layout Information (Refer to Layout Layers)

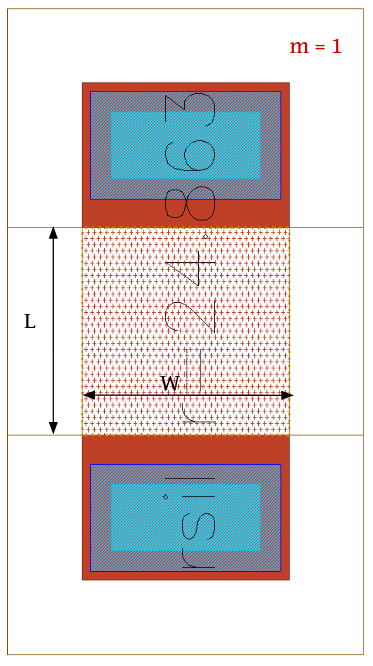

rsil device - layout

Figure 4.5.3 Layout for rsil resistor device

4.5.4. lvsres

Device Information

Metal Resistor

Property

Value

Description

Metal resistor used for LVS purpose.

Device Recognition

Metal[1-5], Metal[1-5].res, TopMetal[1-2], TopMetal[1-2].res

Model Name

lvsres

Layout Cell Name

sg13g2_pr - lvsres

Parameters

w, l, R, layer

Netlist Syntax

R0 net1 net2 lvsres R=0.022 w=5u l=1u layer=Metal1

Parameters Information

Schematic and LVS views Compatibility for lvsres Parameters

Parameter

Description

Schematic-View

LVS-View

LVS-Comparison

W

RES Width

✅

✅

✅

L

RES Length

✅

✅

✅

R

Resistance Value

❌

✅

❌

layer

Metal Layer

✅

✅

✅

Layout Information (Refer to Layout Layers)

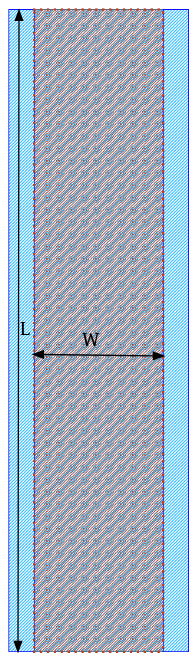

lvsres device - layout

Figure 4.5.4 Layout for lvsres resistor device
